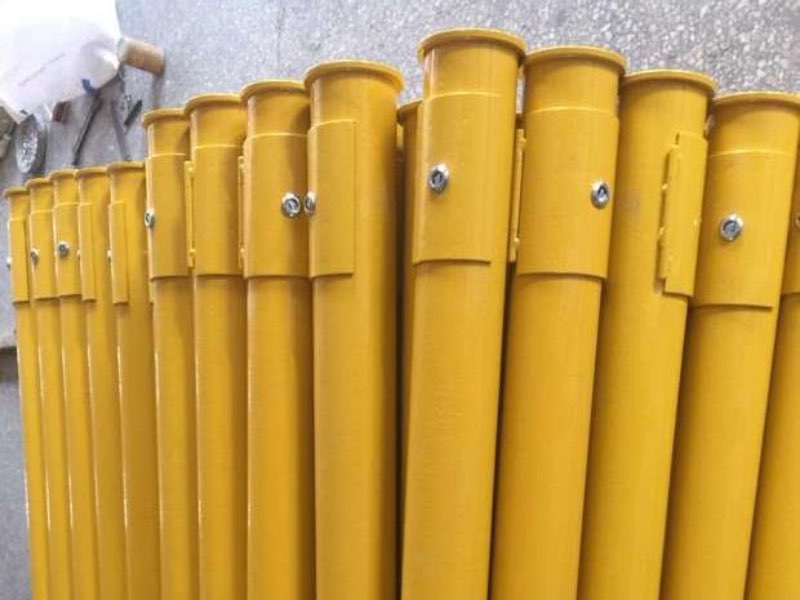

Test point for cathodic protection monitoring formed from 101.6mm Dia x 1,500mm length galvanised carbon steel pipe coated with two component Epoxy Paint colour Yellow.
DESCRIPTION
Test point for monitoring p/l potential formed from 101.6mm Dia x 1,500mm length galvanised carbon steel pipe coated with (2) component Epoxy Paint
colour Yellow. The upper end of the post shall have a terminal board. Each terminal should be provided with eight stainless steel bolts & 2 nut , washer and
spring washer & fixed on non conductive board measuring (70 x120 x6 mm) fixed inside the post.
Board is accessible by a hinged, lockable door. The gauge of pipe shall be 6 mm as min. thickness.
GENERAL LAYOUT
101.6mm dia (post) 108mm dia (lid) x 1,500mm Length
Hinged Lockable Door Non Conductive Panel With stainless steel terminals comprising 6mm bolt, nuts, plain washer and spring washer. Copper Link Bars can be supplied as required.
BOARD CONFIGURATION
Typically a 6 or 8 way terminal board, can befitted with lugs / termminals / links / shunts / resistors / reed switches as required.
