For power feed connections on under tank grid anode system. The power feed connector connects the DC current feeder cable to the Titanium Conductor Bar.

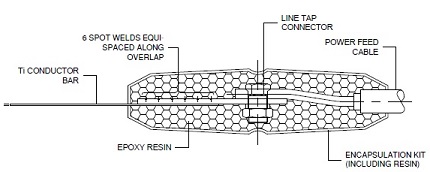

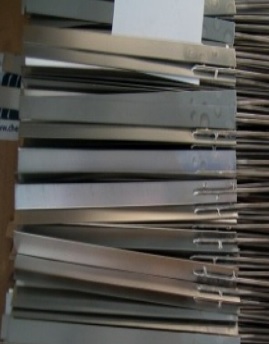

Anode Power Feed Connector comprises 12.7mm width x 0.9mm Thickness x 200mm length Titanium Conductor Bar spot welded to a 100mm length of 3mm diaTitanium Wire. Encapsulation to the DC feeder cable is made by an epoxy splice kit and line tap connector generally.
