Survey Equipment Accessories

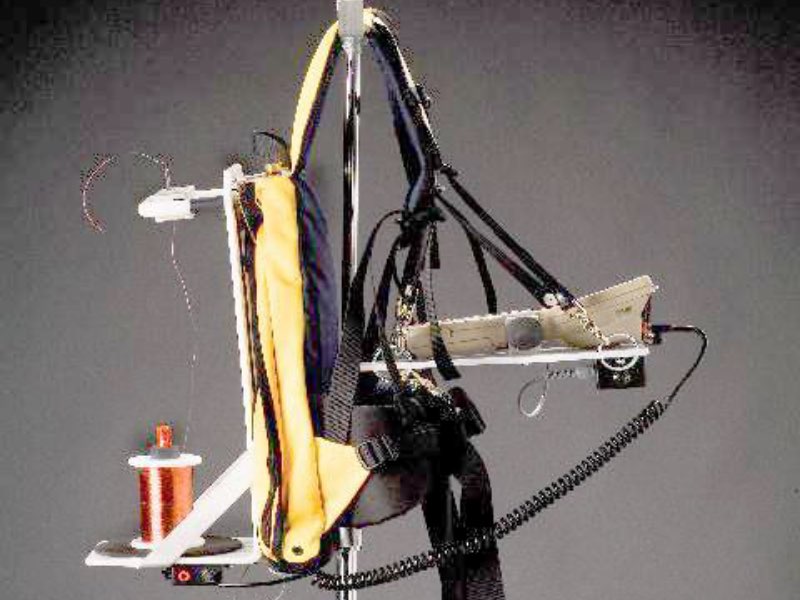

CIS Pack Model MP-100-WC consists of three (3) equipment components identified as the backpack, survey meter tray and the pulsed wire chainer. These three (3) equipment components specifications are outlined by the following sections.

Backpack Specifications

Pack Construction: The pack’s structure is a unique concept in load bearing for equipment mounting. The pack utilizes a simple design of H-Gear shoulder straps and webbed belt.

Webbing: The shoulder straps are heavily padded. The hip belt, shoulder straps, and pack webbing are designed to wick away perspiration.

Suspension System: High performance suspension system adjusts to accommodate virtually any size surveyor even with bulky cold weather gear.

Survey Wire Tray: UHMW high-dielectric plastic, back-mounted survey wire tray equipped with pre-wired 5/8-inch arbor.

Hip Belt: Hip belt contains water bottle and holder for additional 3-inch survey wire spool pouch.

Assembled: Fully wired to accept voltmeter/data collector and data probe(s). Weight 6 lbs (weight does not include survey wire or data collector) Accessories Data Collector Mount Custom mounting brackets upon customers’ request.

Features

Lightweight
Rugged Construction
Ergonomic Design
Modified to accommodate surveyor’s requirements.
Survey Meter Tray and Survey Wire Tray constructed of extremely high-abrasive and impact-resistant UHMW plastic.
Pack equipped with Pulsed Wire Chainer.
Survey Meter Tray provided a stable platform for data collector along with survey test probe ports.
Backpack and Survey Meter Tray straps are adjustable to fit any surveyor.
Fully self-contained and pre-wired ready for use.
