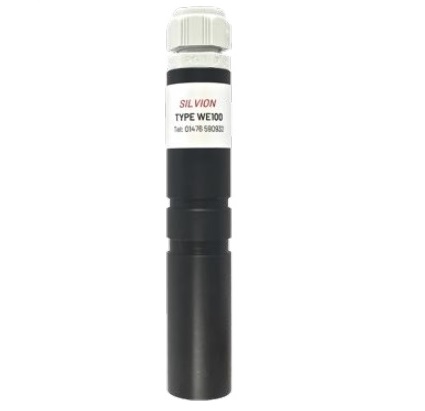

Permanent Silver / Silver Chloride Reference Electrode For Concrete

Permanent Ag/AgCl reference electrodes for embedding in concrete structures. Three sizes of cell are available WE10, WE50 and WE100 as details in the data sheet below.

The silver/silver chloride (Ag/AgCl) elements in all electrodes are manufactured using a “unique” and advanced technique that results in a porous silver matrix. The matrixis then coated with precise quantities of silver/chloride to ensure:

1). High Reliability;
2). High Stability;
3). Greater Accuracy;
4). Increased Life Performance.

NOTE: For our embeddable electrodes we ensure that the predetermined chloride ion concentration around the element is maintained by using an inert electrolyte compatible with the Ag/AgCl chloride element. Ionic continuity to the environment is via a micro-porous sintered disc.
