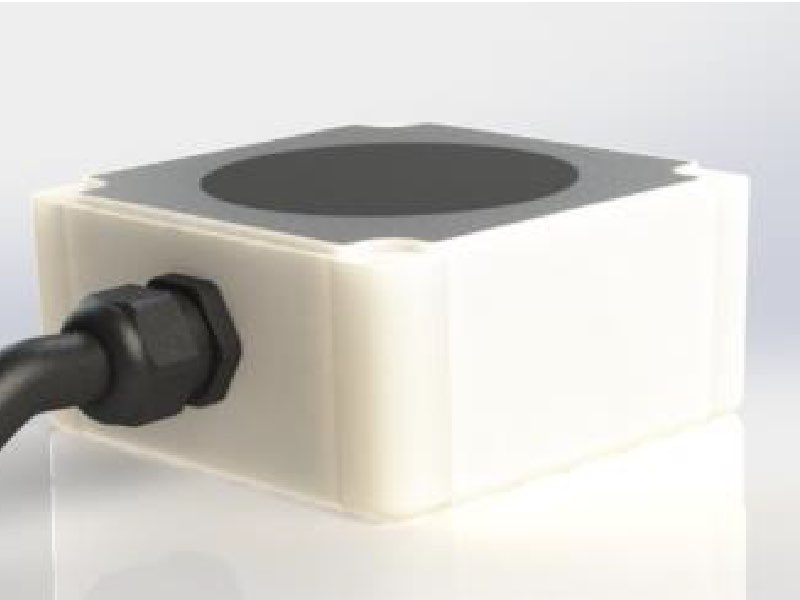

Pipeline Test Coupon

Various cables and coupon surface area and materials available, please advise requirements when ordering.

Ø80mm x 6mm thick Carbon steel disc with exposed area to suit application.

• Mounted in polycarbonate box sized to suit (typical dimensions of 110 x 100 x 50 mm).
• Cable connection by welded threaded bolt, lug, washers and nut all epoxy resin encapsulated.
• Cable tail: Standard 10 m of XLPE/PVC -Other cable types and lengths available upon request.
• Where a permanent reference electrode is installed the Coupon should be located as close to the reference electrode as possible (no more than 300 mm) and in the same backfill as pipeline.
