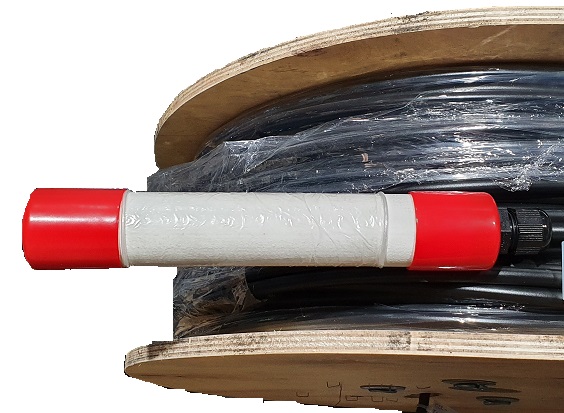

Permanent CuCuSO4 Reference Electrode Undertank Type

This permanent reference electrode is used to measure Cathodic Protection (CP) potentials on buried pipelines, storage tanks and other buried metallic structures to which CP has been applied.

This permanent reference electrode is used to measure Cathodic Protection (CP) potentials on buried pipelines, storage tanks and other buried metallic structures to which CP has been
applied. Can be used with a pipeline coupon that allows you to take an IR free potential reading without interruption of the CP system.

STANDARD SPECIFICATION

Electrolyte : Saturated Copper Sulphate Gel (98.4% Min Purity Cu/SO4 crystals)
Electrode Body : Materials High Temperature Fired Ceramic and Ion Trap.
Weight (Gross) : Approx. 1Kgs net weight
Dimensions Approx. : 36mm Dia x 200mm (Bare Dimensions)
Cable :As per client request but typically supplied with 1c x 6mm2 XLPE/PVC stranded copper conductor cable, 600/1000V grade, black..
