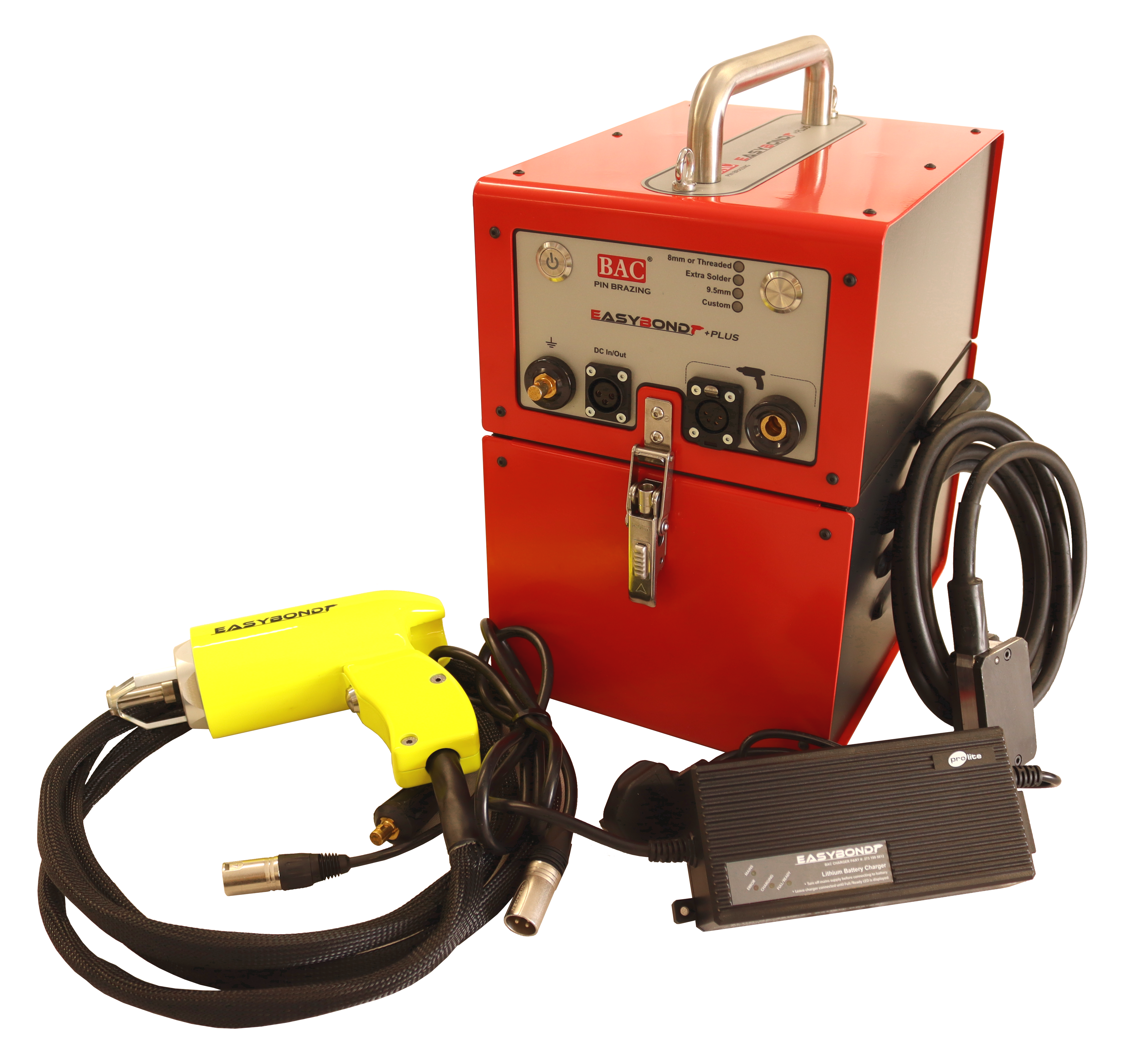

The Easybond Plus makes a significant advancement in the Pin Brazing process with cutting-edge electronic control, eliminating the need for fused pins.
Engineered for efficiency and durability, its maintenance-free electronic trigger means no more replacing contacts or trigger assemblies - just seamless performance every time.
Powered by a lightweight , high-performance 38V lithium iron battery , the Easybond Plus delivers up to 120 brazes per charge while weighing 60% less than traditional lead-acid batteries.
The Easybond Plus is powered by a 38V DC battery pack capable of delivering 200A for use with BAC FUSE LESS direct or threaded pins, ceramic ferrules and cable lugs.
With the pin , ferrule and earth device in place, the gun trigger is depressed, the electronic control will then initiate the braze time. After around 2 seconds the braze is complete and the brazing pin is held into the molten pool of brazing alloy that rapidly cools into a homogenous and very strong connection.
The Easybond Pin Brazing system is designed for many applications including continuity bonding between pipes, across flanges, rails, connection of cathodic protection test and current carrying cables and connection of bracelet galvanic anodes etc.
