All Easybond MK II equipment, consumables and spare parts are normally ex stock and ready for same day delivery at our UK facility and at authorised distributors worldwide.
#273 199 5660
EasyBond MK II System
Complete Easybond MK11 Brazing System (Including all the following components)
pdf
#278 190 3450
Consumables Brazing Pins with Fuse Wire - 2
M10 Threaded Brazing Pin ( Pack Size 40)
pdf
#273 199 5630
Optional Accessories
Battery Pack Battery Pack (c/w 3 x batteries, harness & connector)
pdf
#273 199 0685
Optional Accessories For Easybond II
Die Grinder, c/w 2 x 18V batteries, case and fitted with burr
pdf
#273 199 5640
Optional Accessories For Easybond II
Spare Battery Pack- sealed type, (c/w 3 x batteries, harness, connector & charge adaptor)
pdf
#273 199 0240
Generator Brazing Guns
Gun VF2300-ESAB Standard for Generator c/w 8mm direct Pin & Ferrule Holder
pdf
#273 199 5230
Generator Brazing Guns
Gun VF2300 Extended for Generator c/w 8mm direct Pin & Ferrule Holder
pdf
#273 199 5100
Easybond Reach System (EBRS)
Easybond Reach System (Including all the following components)
pdf
#273 199 5610
Items also required that are common to Easybond Unit:
Battery Box unit for Easybond II complete with battery pack
pdf
#273 199 0685
Items also required that are common to Easybond Unit:
Die Grinder, c/w 2 x 18V batteries, case and fitted with burr
pdf
#273 199 5020
Items also required that are common to Easybond Unit:
Battery charger 110/230v supply
pdf
#270 083 3520
Brazing Pins With Fuse Wire - 2
8mm Direct Brazing Pin Extra Solder (Min Pack size 100)
pdf
#278 100 7360
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 10mm2 cable (Pack size 100)
pdf
#278 100 9000
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 16mm2 cable (Pack size 100)
pdf
#270 088 7800
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 25mm2 cable (Pack size 50)
pdf
#278 100 7810
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 35mm2 cable (Pack size 50)
pdf
#270 088 7790
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 50mm2 cable (Pack size 50)
pdf
#278 100 9890
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug # 6 - #8 AWG cable (Pack size 100)
pdf
#278 100 8590
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 2.5mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 8750
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 4mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 9270
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 6mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 8012
Connection Kits - Stinger - Individual & Kits - 3
Stinger #12 AWG to suit 1 - 2.5mm2 cable (Pack size 100) 2 hole
pdf
#278 100 8042
Connection Kits - Stinger - Individual & Kits - 3
Stinger #10 AWG to suit 4 - 6mm2 cable (Pack size 100) 2 hole
pdf
#278 100 8050
Connection Kits - Stinger - Individual & Kits - 3
Stinger #12 AWG kit comprising 2781008010 #12AWG Stinger (50), 2781903250 Brazing pin (50) & 2700657230 Ferrule (50). (Pack size 50)
pdf
#278 100 8060
Connection Kits - Stinger - Individual & Kits - 3
Stinger #10 AWG kit comprising 2781008010 #10AWG Stinger (50), 2781903250 Brazing pin (50) & 2700657230 Ferrule (50). (Pack size 50)
pdf

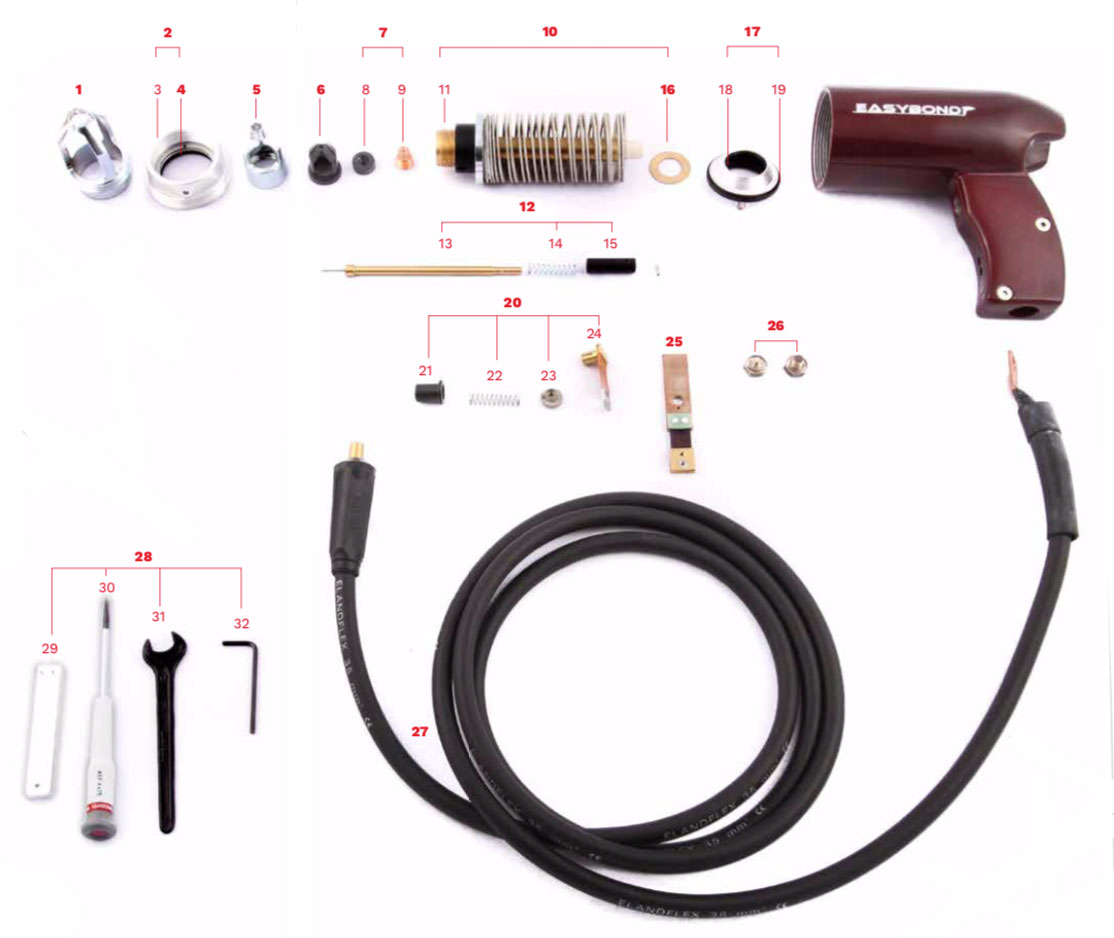

| Image | Photo Ref | Part Number | Description | |
|---|---|---|---|---|
|

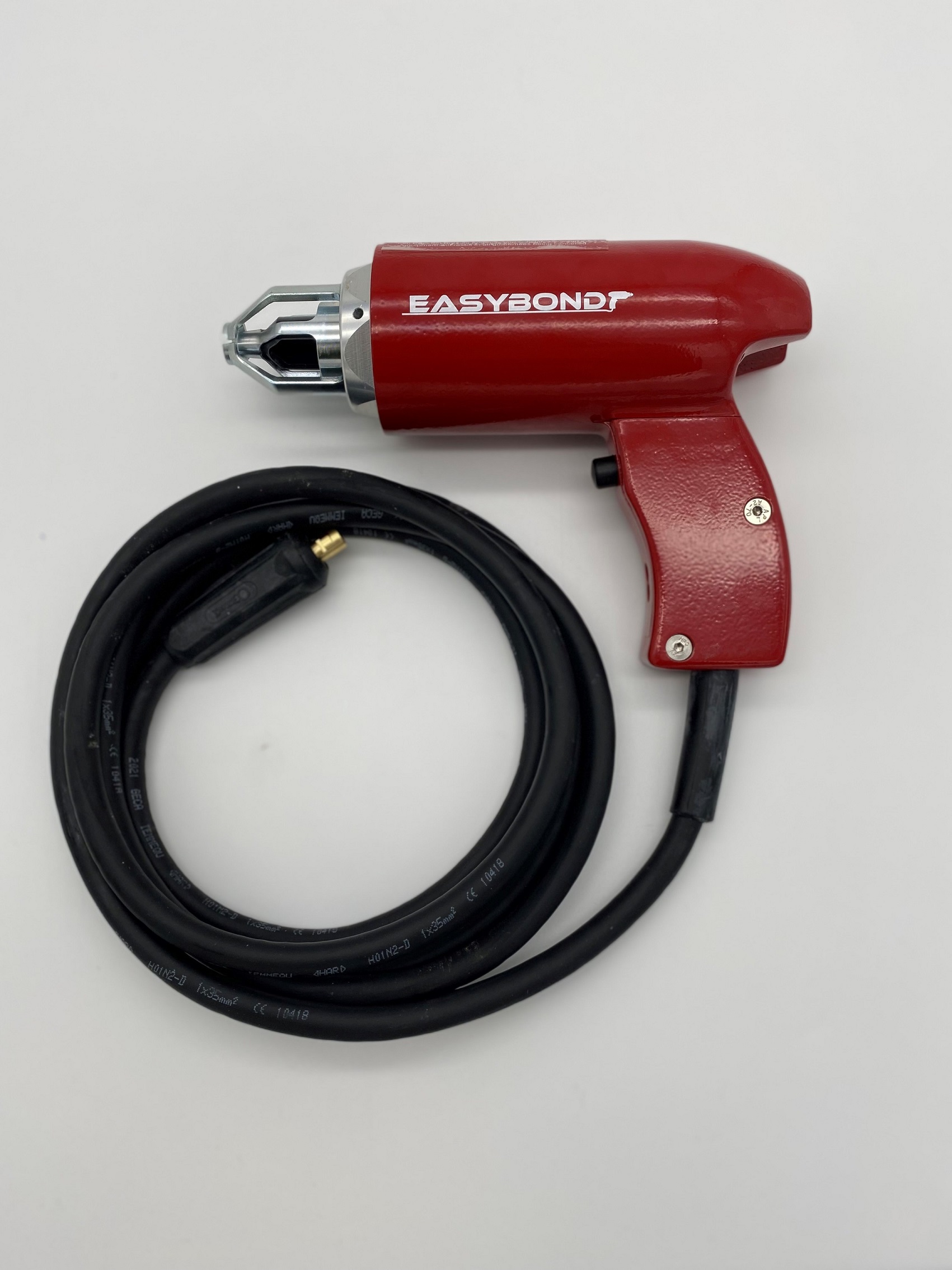

273 199 0780 | Standard brazing gun BB1/ Easybond MKII | ||
|
1 | 270 074 8150 | Ferrule holder for 8mm direct brazing pins | |
|

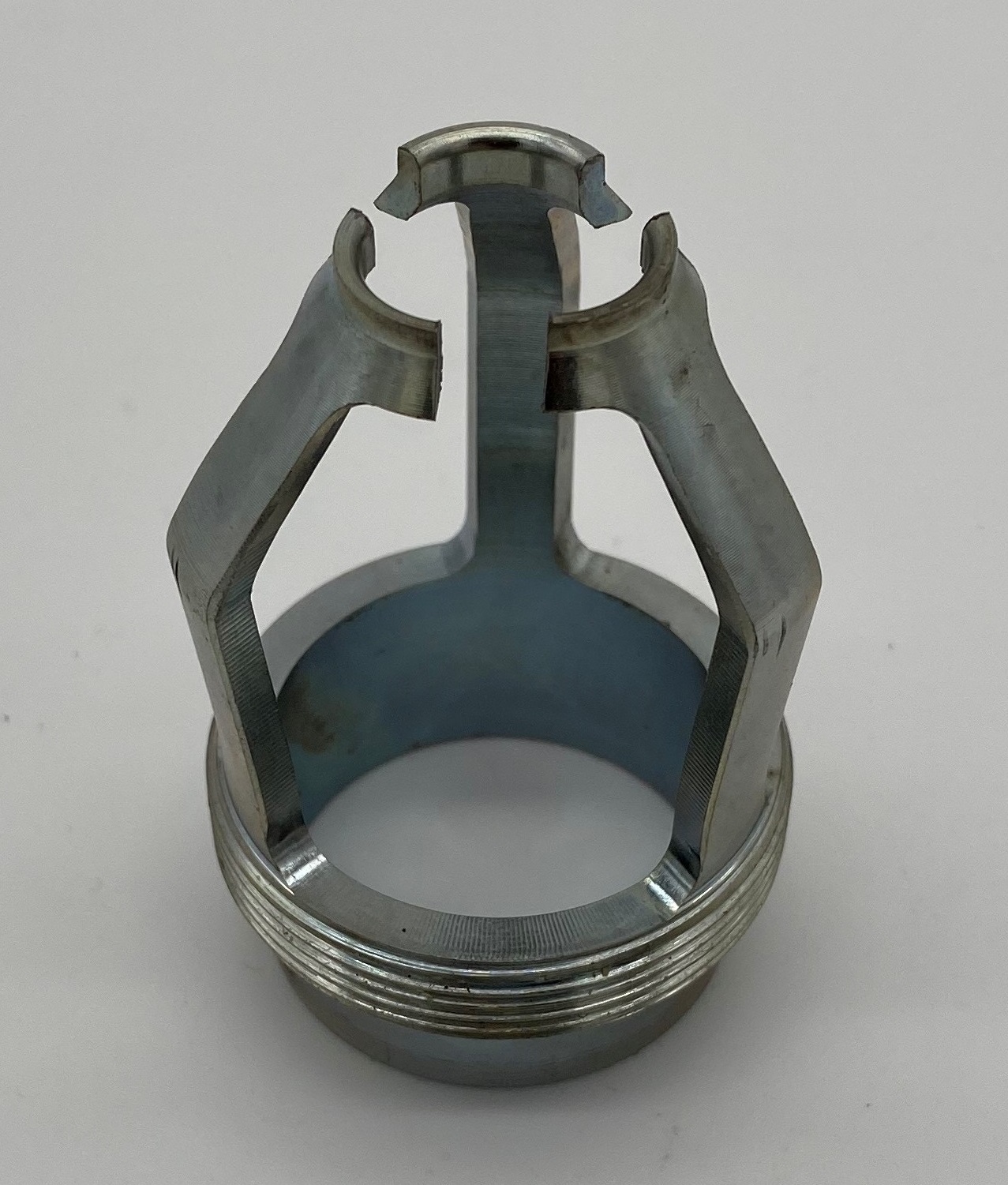

273 100 0560 | Ferrule holder for M8 threaded brazing pins | ||
|

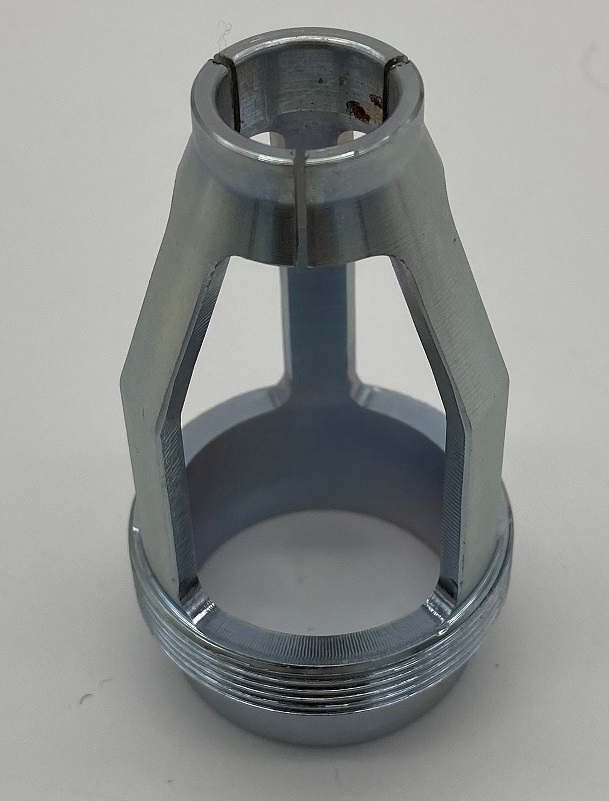

273 100 1240 | Ferrule holder for M10/M12 threaded brazing pins | ||
|

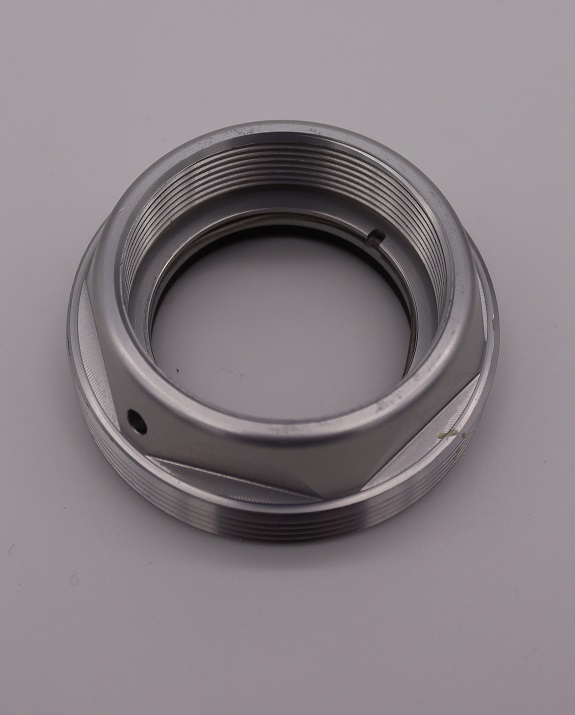

2 | 273 190 0560 | Front piece complete with locking ring | |
|

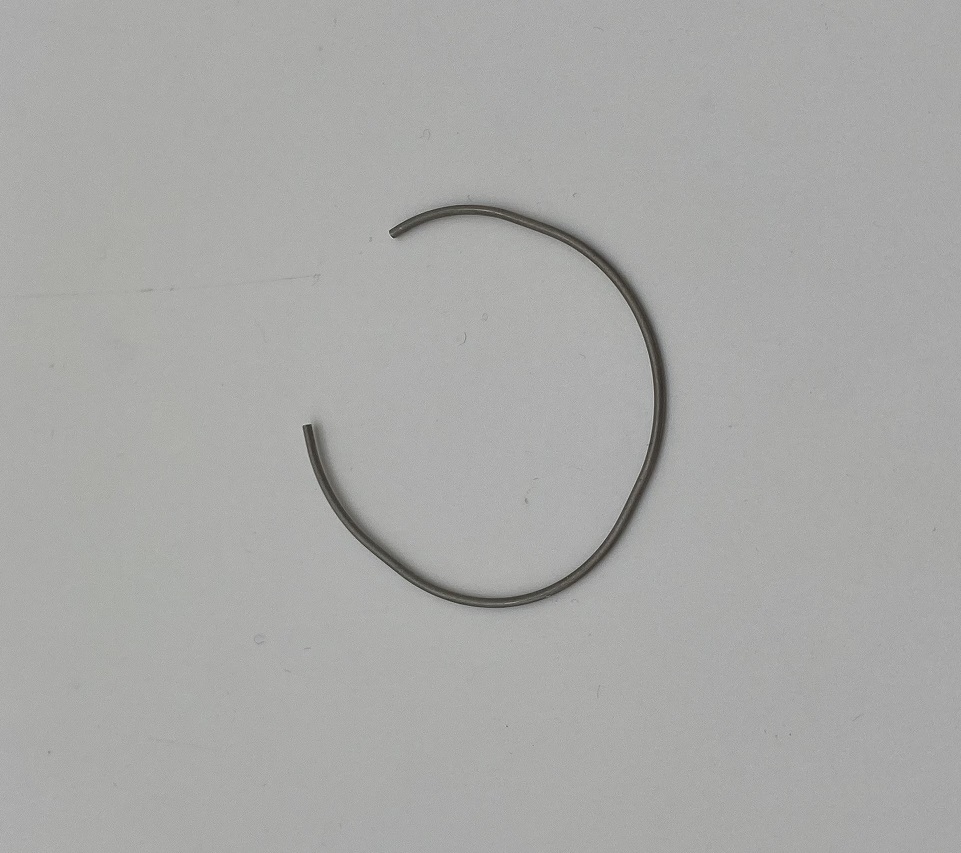

4 | 270 074 8160 | Locking ring | |
|

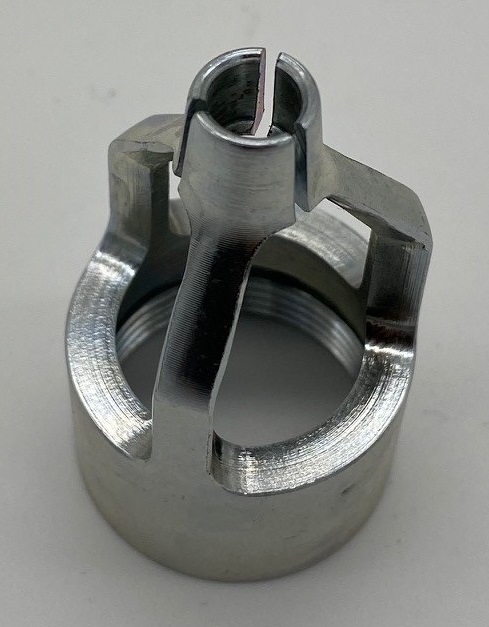

5 | 270 071 5600 | Pin holder for 8mm direct brazing pins | |
|

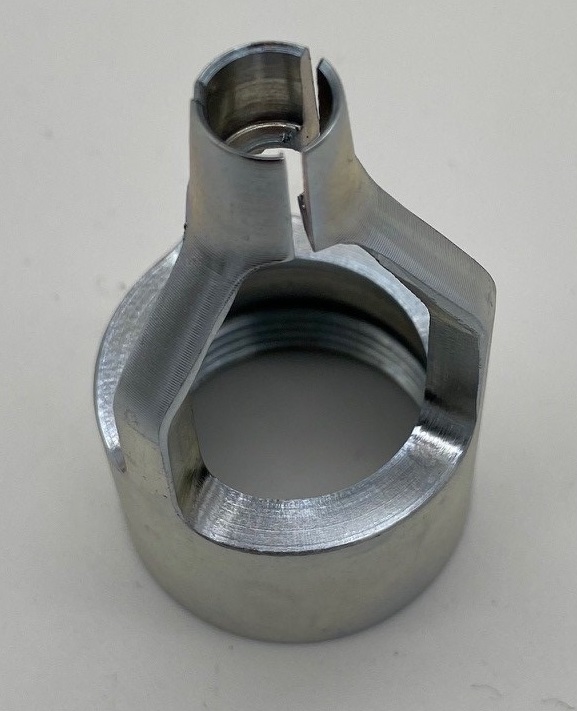

273 100 0550 | Pin holder for M8 threaded brazing pins | ||
|

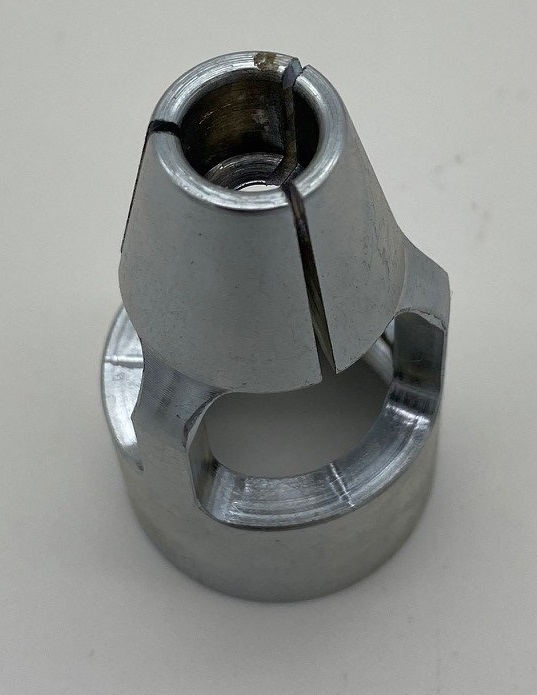

5 | 273 100 3870 | Pin holder for M10 threaded brazing pins | |
|

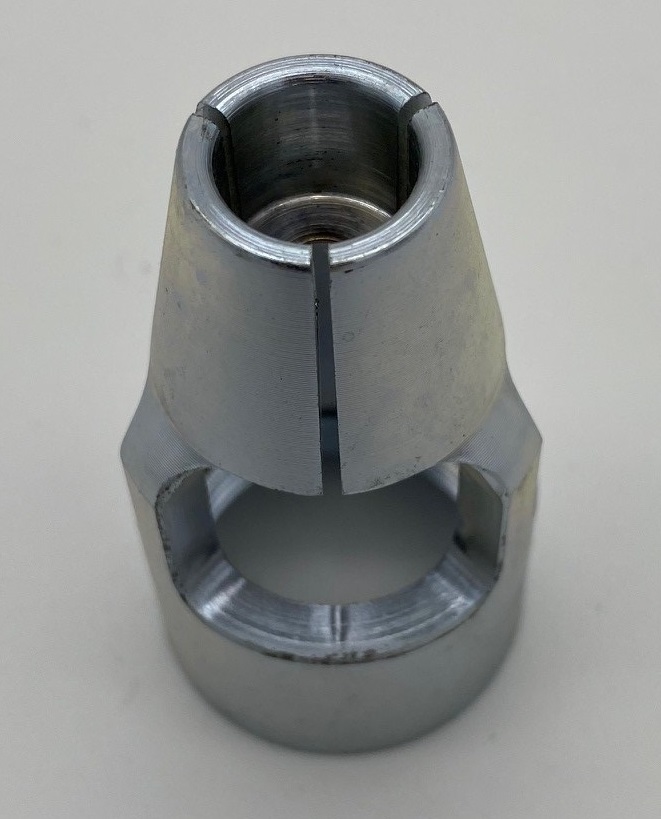

273 100 1230 | Pin holder for M12 threaded brazing pins | ||
|

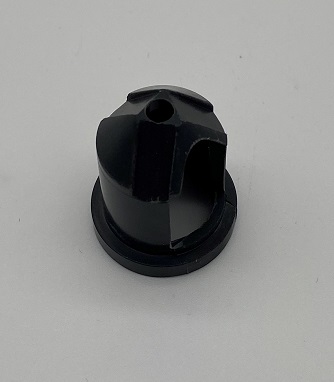

6 | 270 071 5610 | Spark shield | |
|

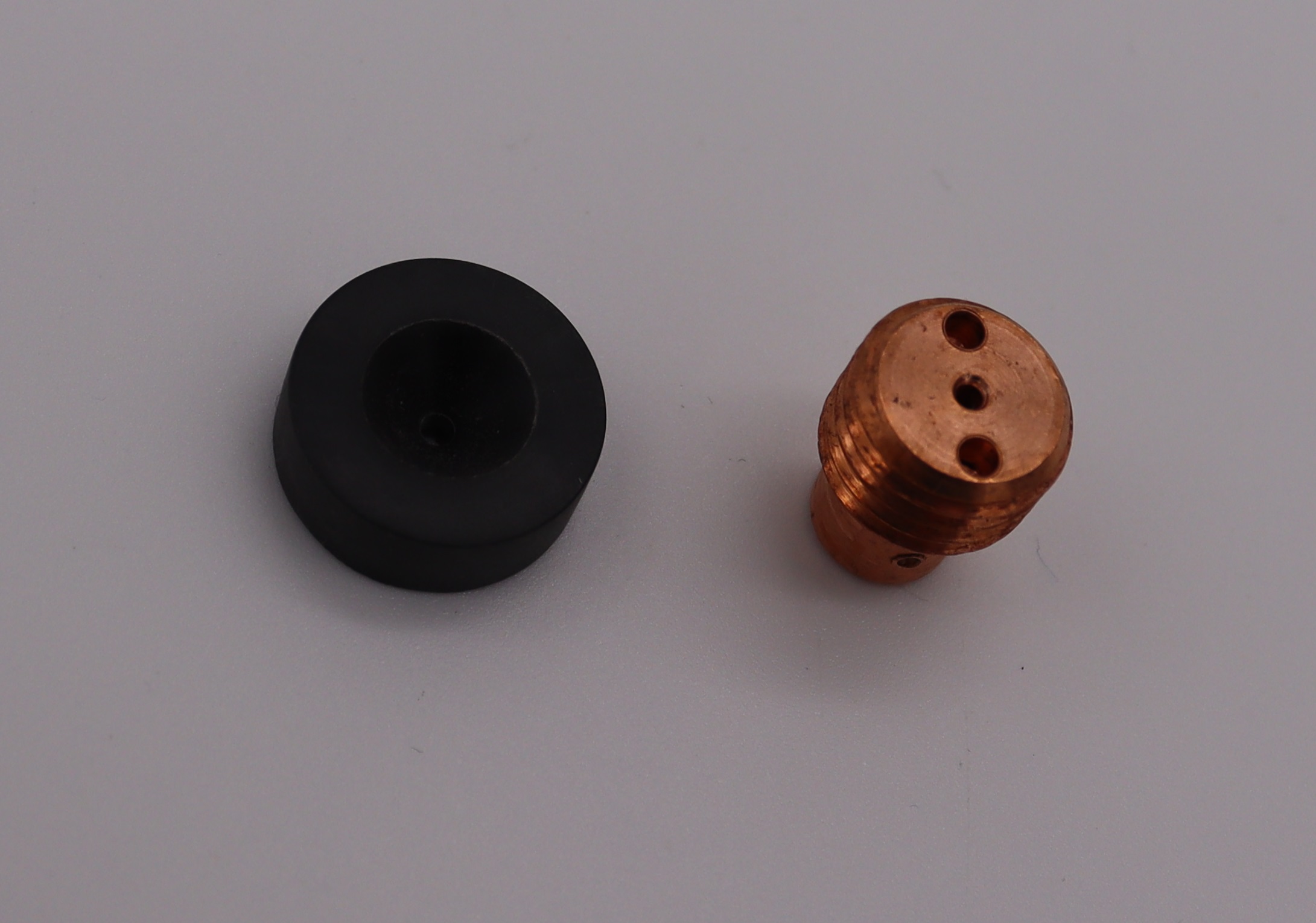

7 | 273 190 0570 | Contact nipple and washer (5 pack) | |
|

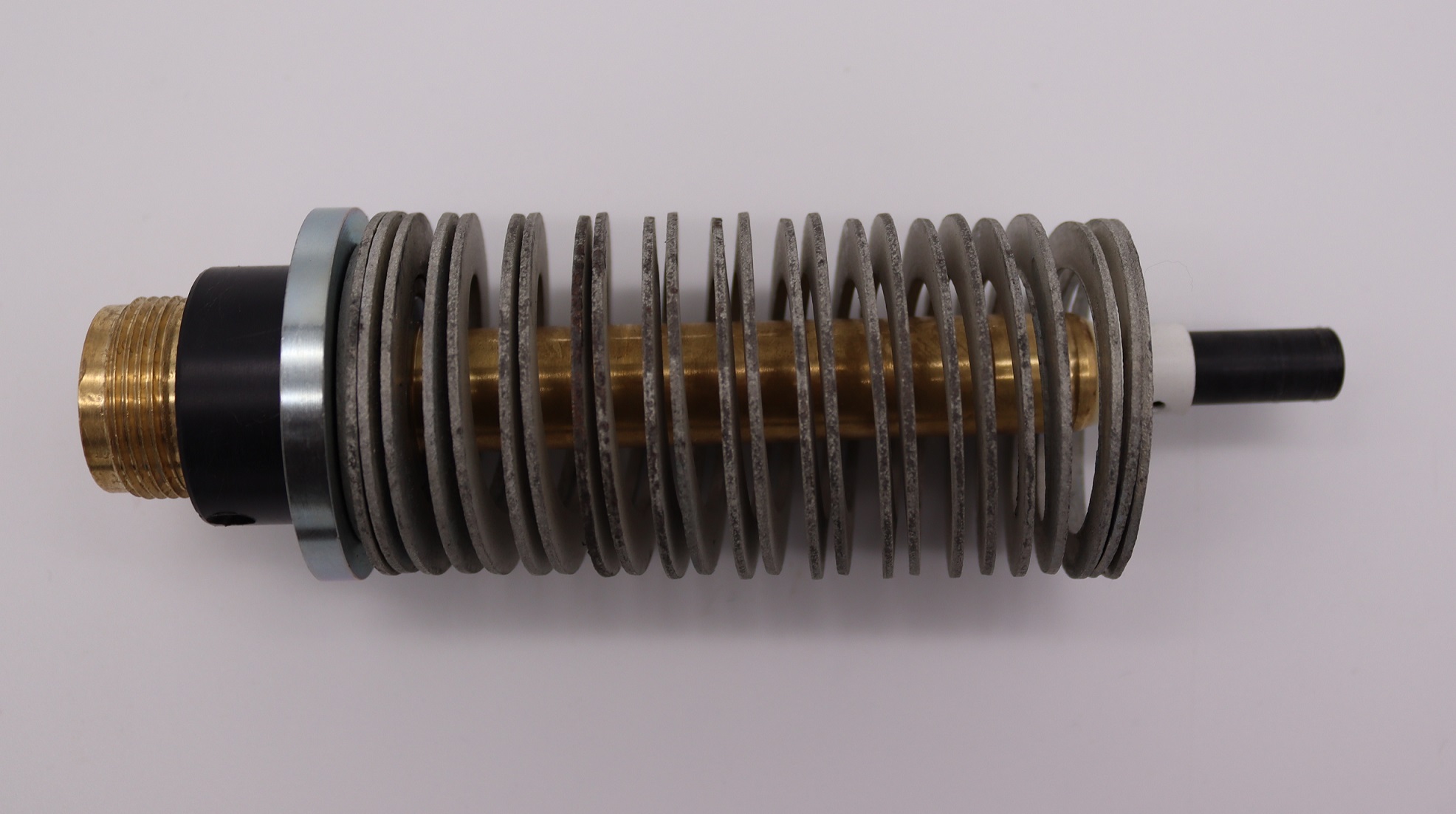

10 | 273 074 8220 | Centre piece complete | |
|
12 | 273 190 0580 | Ejector rod complete | |
|

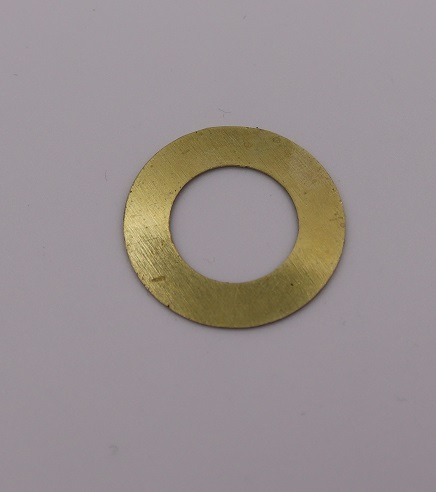

16 | 270 071 5340 | Remanence washer | |
|

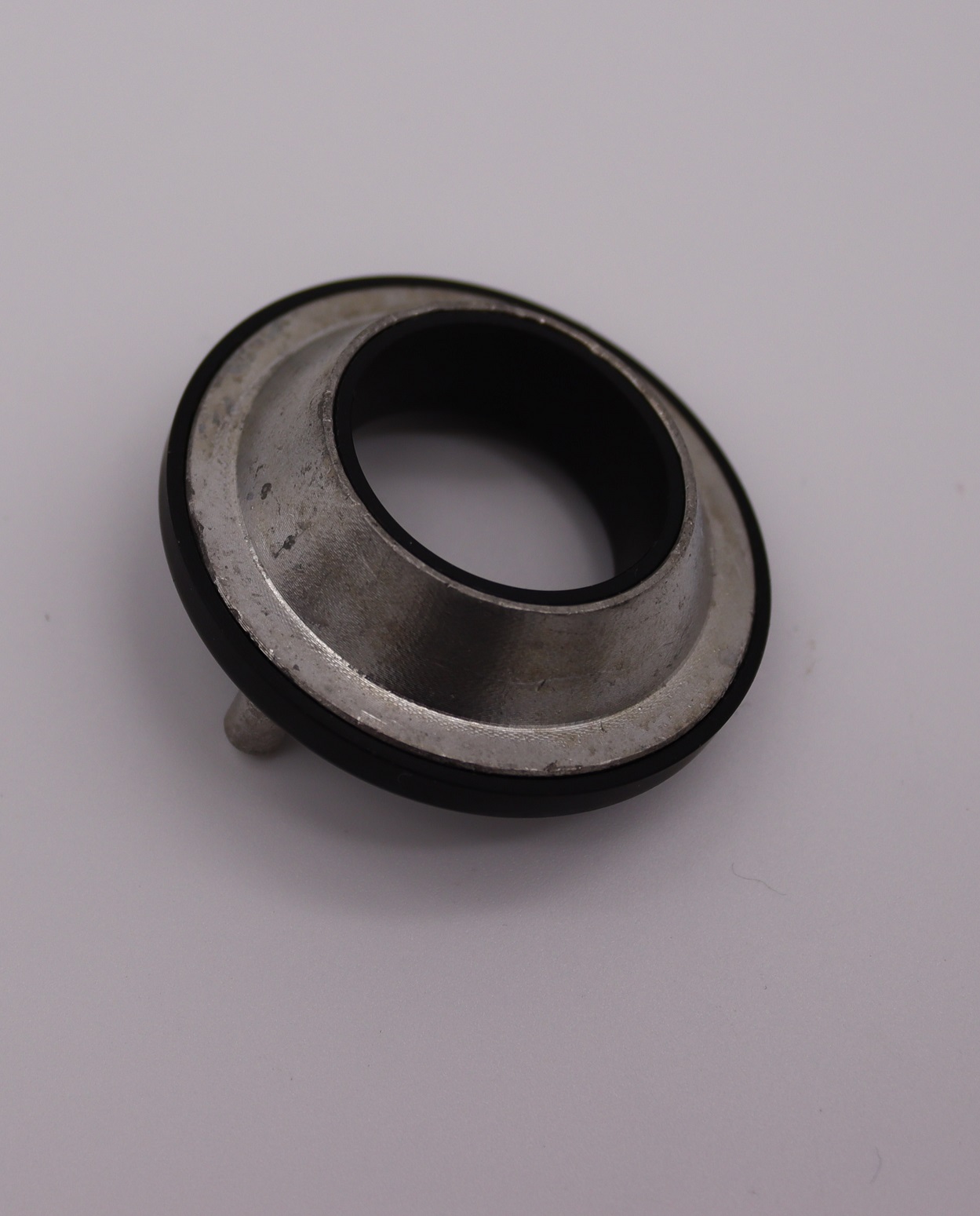

17 | 273 190 0590 | Conductor ring and insulating ring | |
|

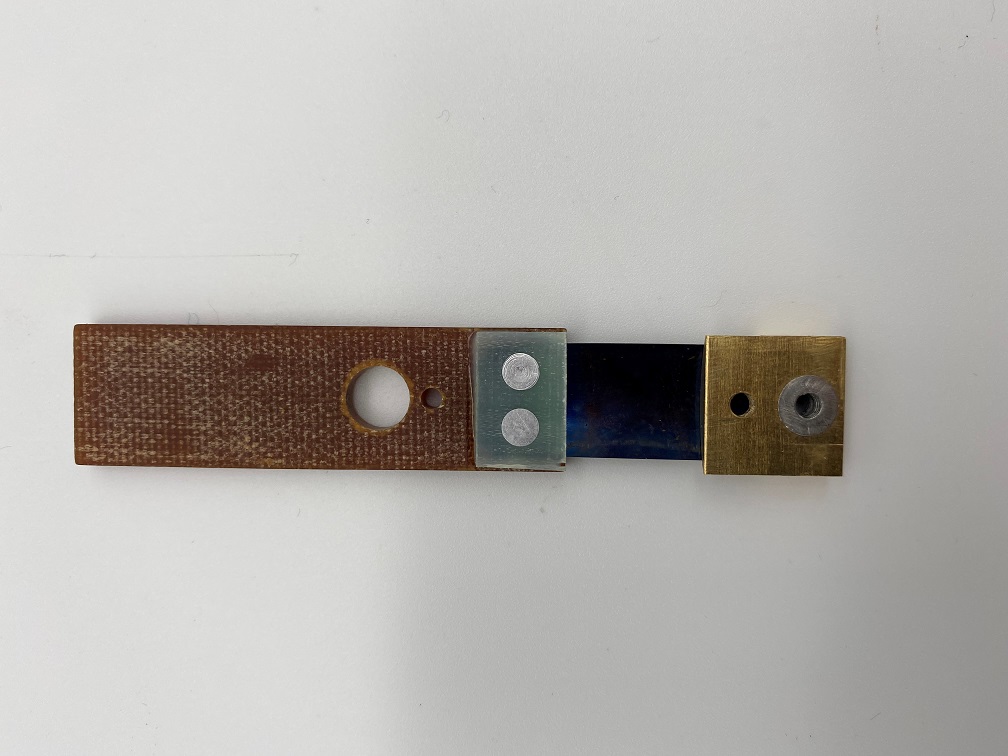

25 | 270 071 5700 | Contact arm | |
|

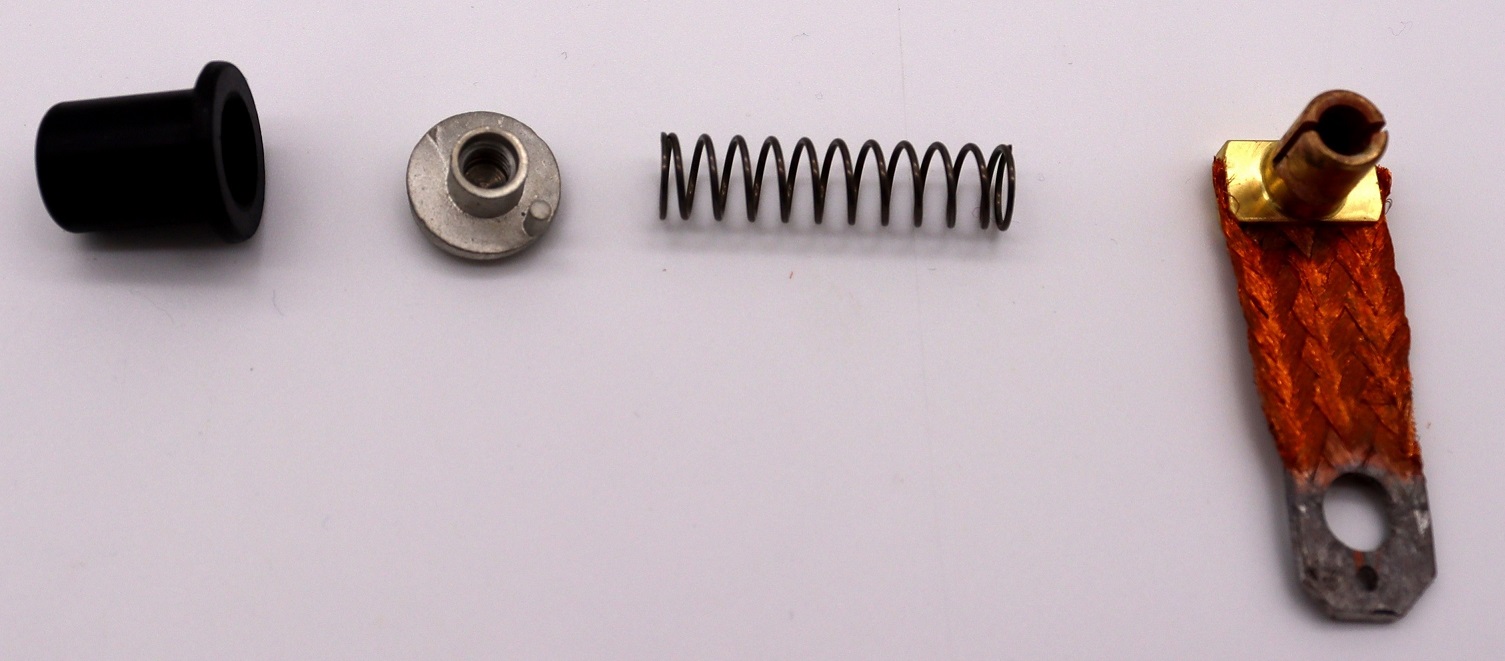

20 | 273 190 0600 | Trigger assembly | |
|

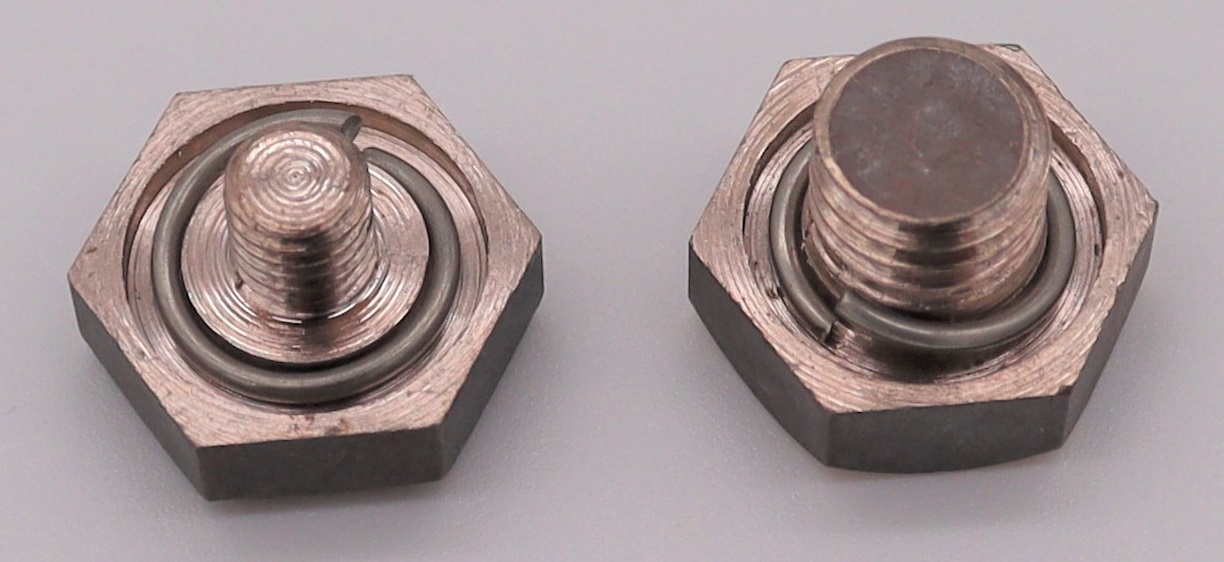

26 | 273 190 0110 | Contact set complete | |
|

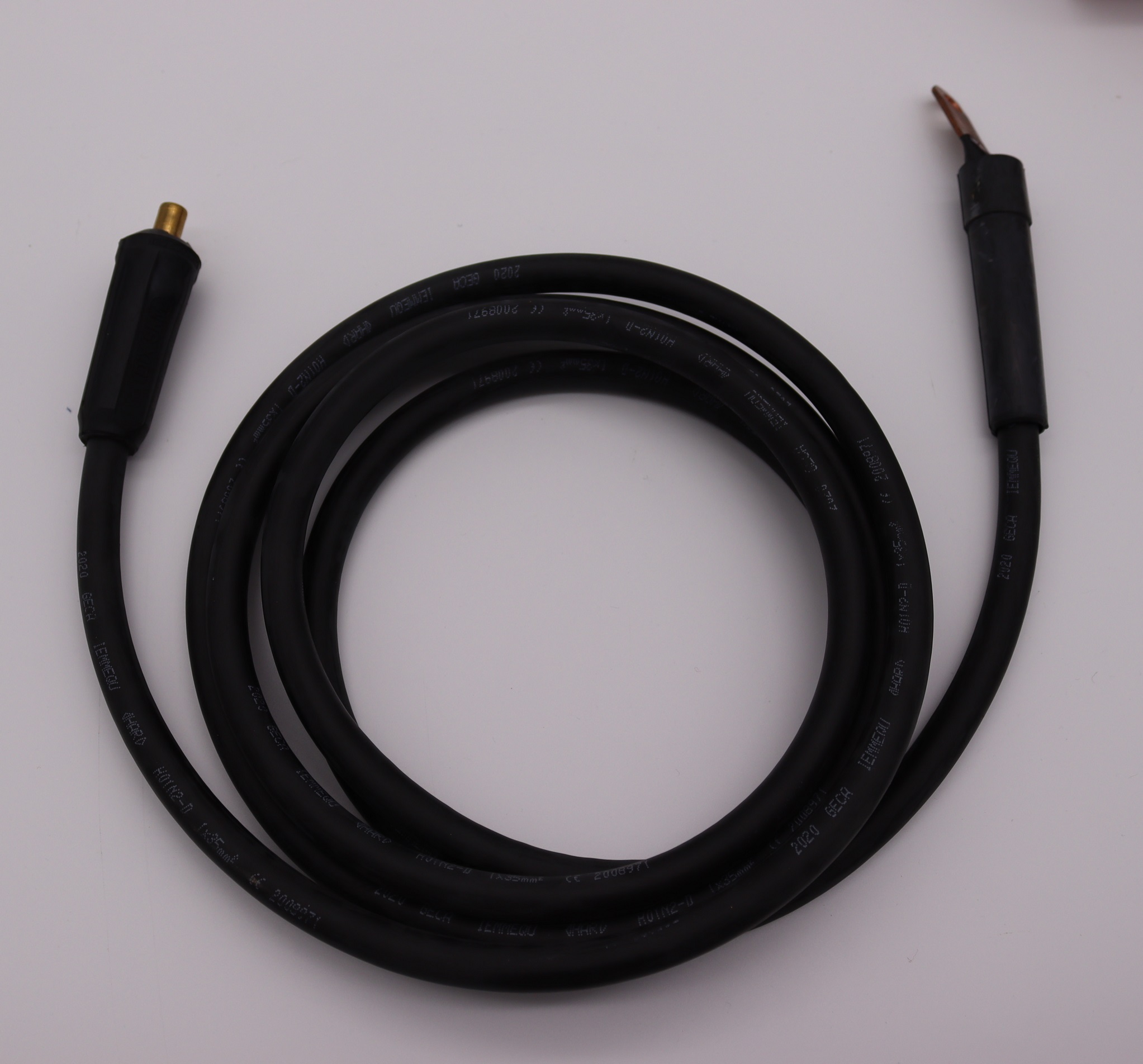

27 | 273 190 1310 | Cable 35mm sq. 2.7m long | |
|

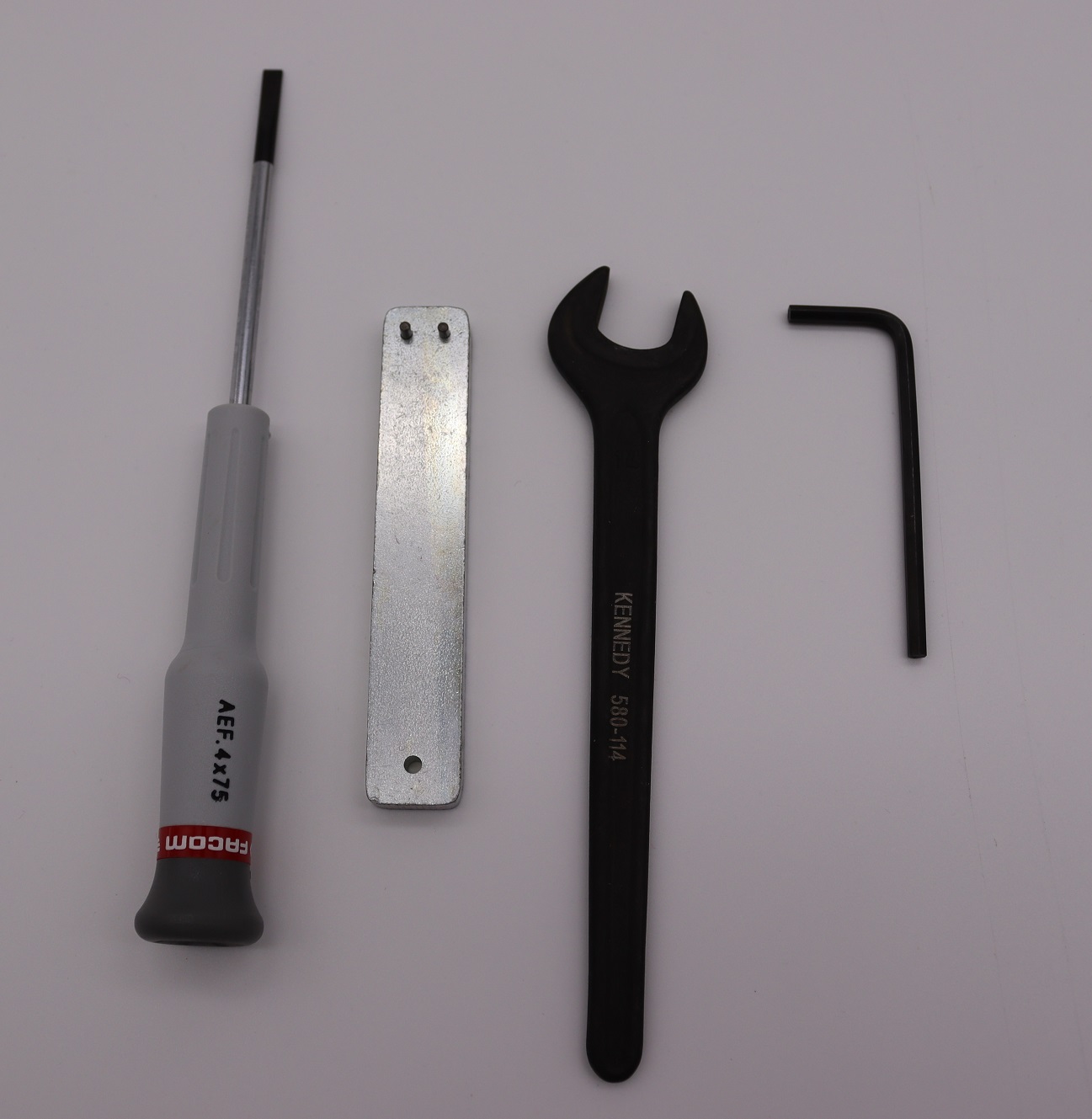

28 | 273 190 0610 | Tool kit | |
|

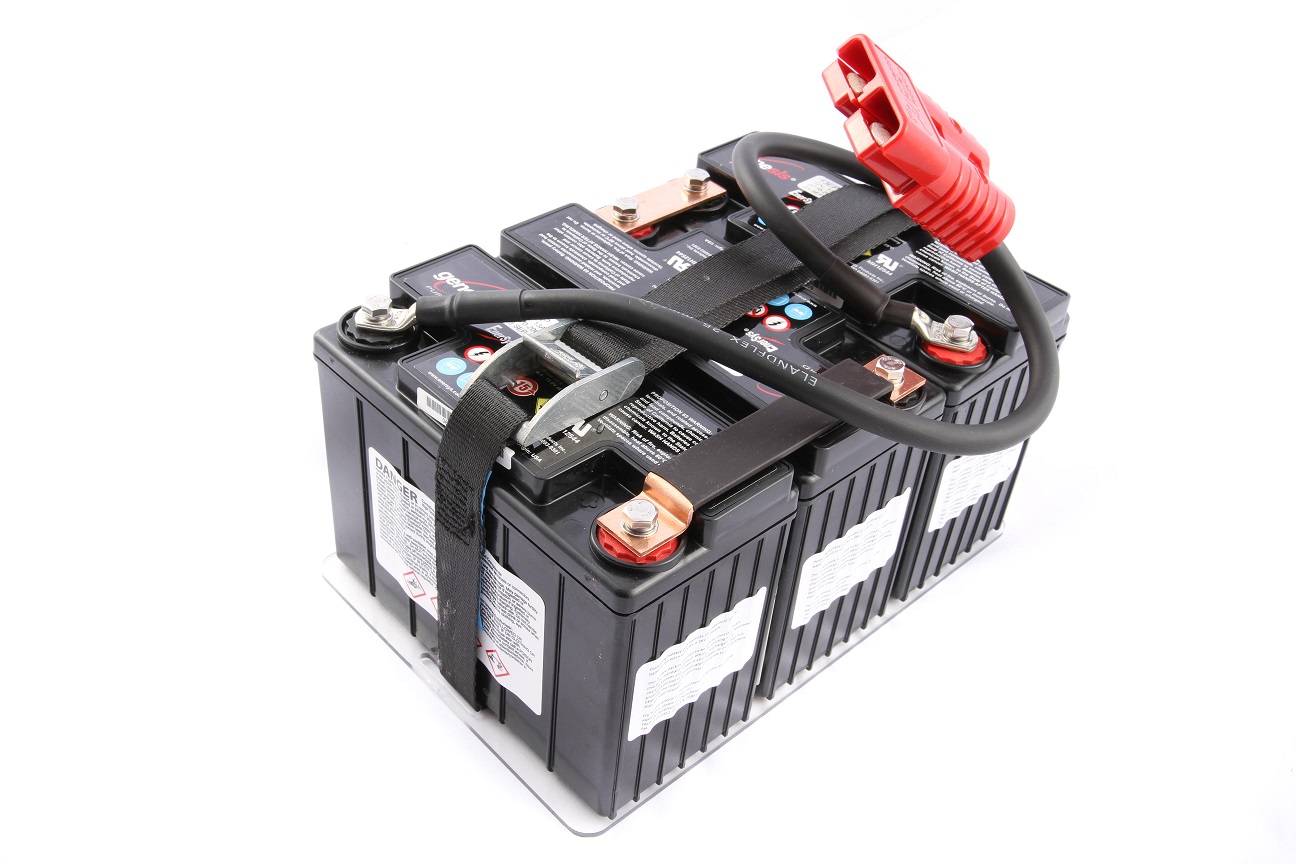

273 199 5630 | Battery Pack Battery Pack (c/w 3 x batteries, harness & connector) |
