The BAC Pin Brazing technique is based upon Electric-arc silver soldering using a specially designed portable Pin Brazing unit. Easybond Pin Brazing is ideally suited for many applications including continuity bonding between pipes, across flanges, connection of cathodic protection test and current carrying cables and connection of bracelet galvanic anodes.
#273 199 5660

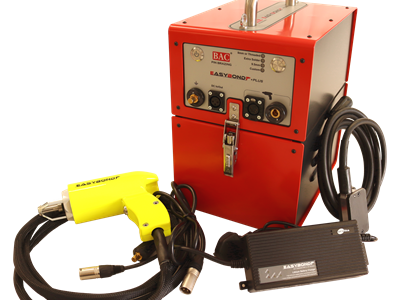

EasyBond MK II System
Complete Easybond MK11 Brazing System (Including all the following components)
pdf
#278 190 3450
Consumables Brazing Pins with Fuse Wire - 2
M10 Threaded Brazing Pin ( Pack Size 40)
pdf
#273 199 5630
Optional Accessories

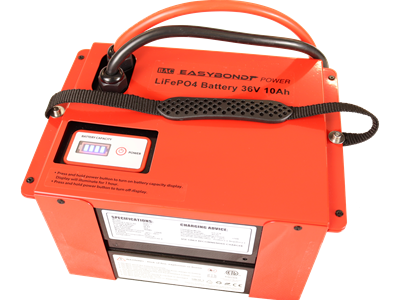

Battery Pack Battery Pack (c/w 3 x batteries, harness & connector)
pdf
#273 199 0685
Optional Accessories For Easybond II
Die Grinder, c/w 2 x 18V batteries, case and fitted with burr
pdf
#273 199 5640
Optional Accessories For Easybond II
Spare Battery Pack- sealed type, (c/w 3 x batteries, harness, connector & charge adaptor)
pdf
#273 199 0240
Generator Brazing Guns
Gun VF2300-ESAB Standard for Generator c/w 8mm direct Pin & Ferrule Holder
pdf
#273 199 5230
Generator Brazing Guns
Gun VF2300 Extended for Generator c/w 8mm direct Pin & Ferrule Holder
pdf
#273 199 5100
Easybond Reach System (EBRS)
Easybond Reach System (Including all the following components)
pdf
#273 199 5610
Items also required that are common to Easybond Unit:
Battery Box unit for Easybond II complete with battery pack
pdf
#273 199 0685
Items also required that are common to Easybond Unit:
Die Grinder, c/w 2 x 18V batteries, case and fitted with burr
pdf
#273 199 5020
Items also required that are common to Easybond Unit:
Battery charger 110/230v supply
pdf
#270 083 3520
Brazing Pins With Fuse Wire - 2
8mm Direct Brazing Pin Extra Solder (Min Pack size 100)
pdf
#278 100 7360
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 10mm2 cable (Pack size 100)
pdf
#278 100 9000
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 16mm2 cable (Pack size 100)
pdf
#270 088 7800
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 25mm2 cable (Pack size 50)
pdf
#278 100 7810
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 35mm2 cable (Pack size 50)
pdf
#270 088 7790
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug 50mm2 cable (Pack size 50)
pdf
#278 100 9890
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Cable lug # 6 - #8 AWG cable (Pack size 100)
pdf
#278 100 8590
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 2.5mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 8750
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 4mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 9270
Cable Lugs - Suitable For All 8mm Direct Brazing Pins & Ferrule - 4
Sleeve 6mm2 t/s 278 100 7360 (Pack size 100)
pdf
#278 100 8012
Connection Kits - Stinger - Individual & Kits - 3
Stinger #12 AWG to suit 1 - 2.5mm2 cable (Pack size 100) 2 hole
pdf
#278 100 8042
Connection Kits - Stinger - Individual & Kits - 3
Stinger #10 AWG to suit 4 - 6mm2 cable (Pack size 100) 2 hole
pdf
#278 100 8050
Connection Kits - Stinger - Individual & Kits - 3
Stinger #12 AWG kit comprising 2781008010 #12AWG Stinger (50), 2781903250 Brazing pin (50) & 2700657230 Ferrule (50). (Pack size 50)
pdf
#278 100 8060
Connection Kits - Stinger - Individual & Kits - 3
Stinger #10 AWG kit comprising 2781008010 #10AWG Stinger (50), 2781903250 Brazing pin (50) & 2700657230 Ferrule (50). (Pack size 50)
pdf

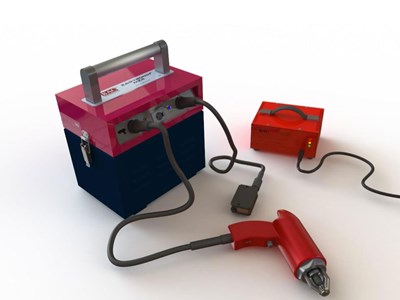

Easybond Pin Brazing System
Easybond Pin Brazing is ideally suited for many applications including continuity bonding between pipes, across flanges, connection of cathodic protection test and current carrying cables and connection of bracelet galvanic anodes etc.
Easybond Pin Brazing Equipment & Accessories
We can supply all of your Pin Brazing equipment, accessory and spares needs from our stock. We ship worldwide and hold strategic stocks in various territories.
Easybond Pin Brazing Consumables
BAC manufacture a range of brazing pins, lugs and bonds suitable for cables from 1mm2 up to 50mm2. All BAC brazing pins are manufactured to the highest standards to ensure a safe, consistent and reliable connection.
Easybond Pin Brazing Spare Parts
All Easybond MK II equipment, consumables and spare parts are normally ex stock and ready for same day delivery at our UK facility and at authorised distributors worldwide.
Easybond Pin Brazing Training & Servicing
In order to get the best from your Easybond equipment we would always recommend training for your operatives and technicians. BAC and it’s authorised importers/distributors offer a full service and repair capability for your Easybond equipment
